Havoc C2: First look

Tools Oct 5, 2022

Havoc is a modern and malleable post-exploitation command and control framework, created by @C5pider. I first came into contact with Havoc C2 in April 2022 when it was still a private tool under development. C5pider went on Flangvik's stream to discuss about development in general and demoed this awesome tool. Back in May it was announced that Havoc would be released in about 3-5 months and here we are!

I'm gona deploying this into my infra and playing around with it in this post! Been wanting to test out the Sleep Obfuscation implementation on the Demon for a while now.

Sidenote: You'll notice a lot of similarities between Havoc and Cobalt Strike and that's not necessarily a downside IMO!

Prerequisites

Debian-Based Host (C2 Server)
Debian-Based Host (C2 Client)
Target Host (Windows 7/10/11)

Setup & Installation

(C2 Server)

Installation

Prerequisites Packages

┌──(nee㉿4pfsec)-[~]
└─$ sudo apt install -y git build-essential apt-utils cmake libfontconfig1 libglu1-mesa-dev libgtest-dev libspdlog-dev libboost-all-dev libncurses5-dev libgdbm-dev libssl-dev libreadline-dev libffi-dev libsqlite3-dev libbz2-dev mesa-common-dev qtbase5-dev qtchooser qt5-qmake qtbase5-dev-tools libqt5websockets5 libqt5websockets5-dev qtdeclarative5-dev golang-go qtbase5-dev libqt5websockets5-dev libspdlog-dev python3-dev libboost-all-dev mingw-w64 nasm

Setting up the bookworm repo for Python 3.10.

┌──(nee㉿4pfsec)-[~]
└─$ echo 'deb http://ftp.de.debian.org/debian bookworm main' >> /etc/apt/sources.list
sudo apt update
sudo apt install python3-dev python3.10-dev libpython3.10 libpython3.10-dev python3.10

Setup

Git Clone

┌──(nee㉿4pfsec)-[~]
└─$ git clone https://github.com/HavocFramework/Havoc.git

Building the Client

cd Havoc/Client
mkdir Build
cd Build
cmake ..
cd ..
./Install.sh

Building the Teamserver

cd Havoc/Teamserver
go mod download golang.org/x/sys
go mod download github.com/ugorji/go

┌──(nee㉿4pfsec)-[~/Havoc/Teamserver]
└─$ ./teamserver

With that, Havoc is installed and ready to go!

Havoc Framework

The C2 consists of 2 main parts. The client and the team server. Let's start off with the Teamserver.

Teamserver

The teamserver allows us to specify a profile or use the default one. The profile allows us to edit configs of the following domains:

Teamserver
Operator
Listener
Service
Payload

The default profile is located at Havoc/Teamserver/profiles

Running the teamserver with a profile

┌──(nee㉿4pfsec)-[~/Havoc/Teamserver]
└─$ ./teamserver server --profile profiles/havoc.yaotl

Client

Running the Client

┌──(kali㉿kali)-[~]
└─$ Havoc/Client/Havoc

Connecting to the teamserver

Name
C2 Host
C2 port
C2 User:Password

And we're in! The Dracula theme on the client looks really good. Let's check out some of the functionalities!

Configuring Listeners

View->Listeners->Add

Let's configure our listener and point the host to c2.4pfsec.com. _{This is the domain proxied through Cloudflare.}

Generating Payload (UNDETECTED BY Windows Defender)

As of writing, the payload is not detected by Microsoft Defender. (05/10/22)

Attack->Payload->Generate

Callback to C2 (UNDETECTED BY Windows Defender)

As of writing, the callback method is not picked up by Microsoft Defender. (05/10/22)

Now that we have our payload, lets deliver and execute it. _{[You're free to use any delivery method]}

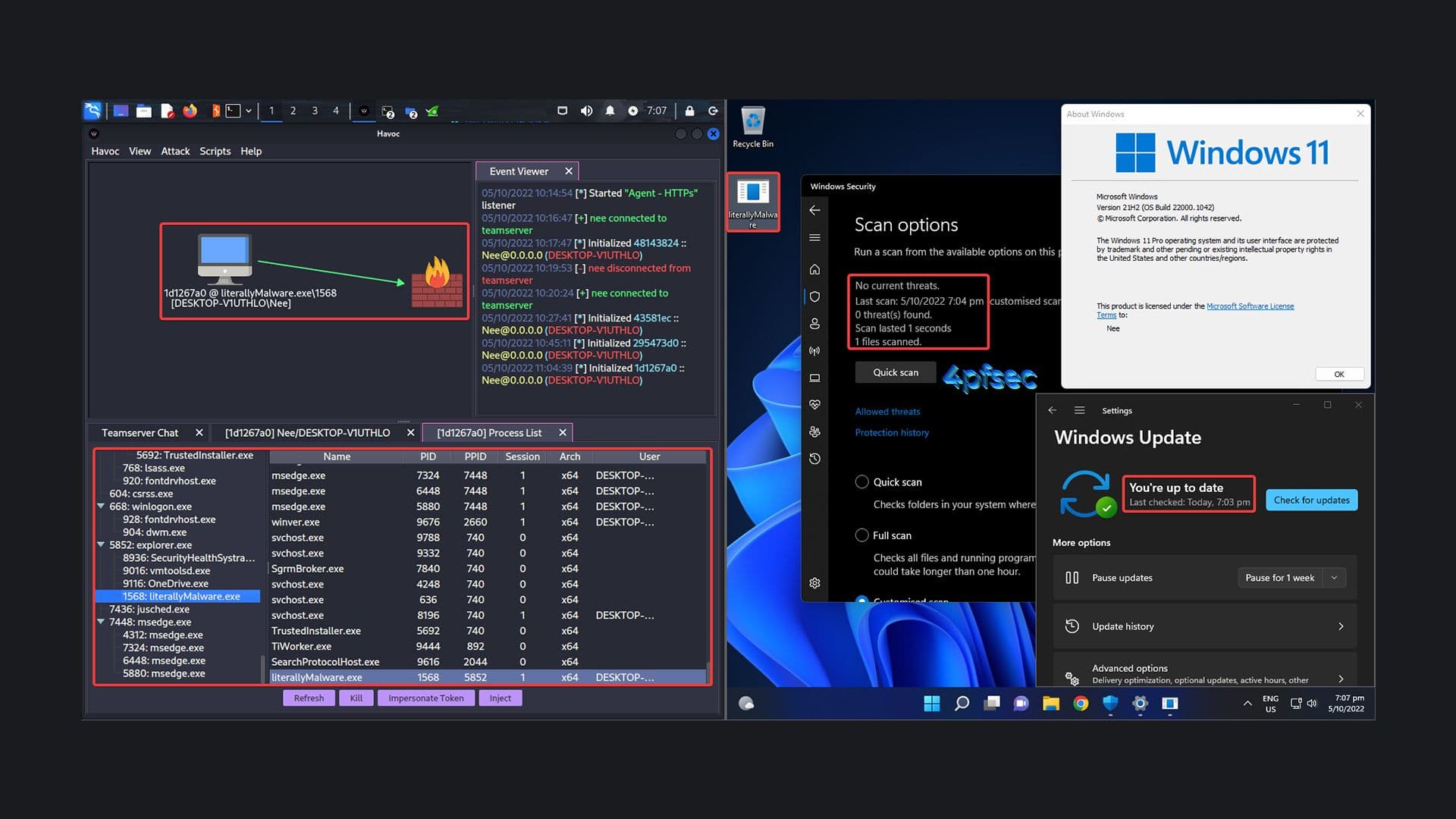

I simply hosted an SMB share and transferred the payload to the target. As shown in the demo below, I was able to get a call back from a fully patched Windows 11 Pro Machine using the generated payload.

Interacting with Target

There's a whole list of commands that you're able to run on the target once it calls back to your C2. The target will fetch the C2 for jobs based on the given sleep duration during payload generation.

shell

You're able to run shell commands directly on the target with the help of Havoc
